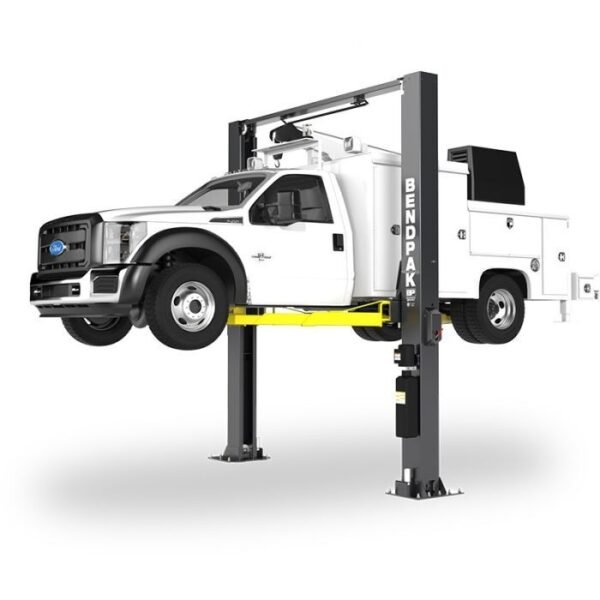

The XPR-12CL is our closed-top model. A closed-top model offers clearfloor convenience, as it runs hydraulic lines up and out of sight, but it may not fit taller vehicles. A closed-top/clearfloor two-post lift allows two technicians to easily move toolboxes, transmission jacks, oil drains and other equipment underneath the elevated vehicle.
Quality assurance for heavy-duty lifting
Triple-telescoping arm set
Optional, super-long arm set
Optional column extension
Low-profile, dropped-end frame contact pads
16-Piece adapter set / standard
Lowered arm tube supports
Automatic arm restraints
Taller lift carriages
Maintenance-free load bearings
Single-piece columns
Dual Direct-Drive technology
Single-point safety release
On the level
Auto-shutoff
Industrial-grade hydraulic cylinders
High-speed hydraulics
Extended height
Features
12,000-lb. lifting capacity
CE Approved and Certified. Meets or exceeds the standards prescribed by European Standard EN 1493

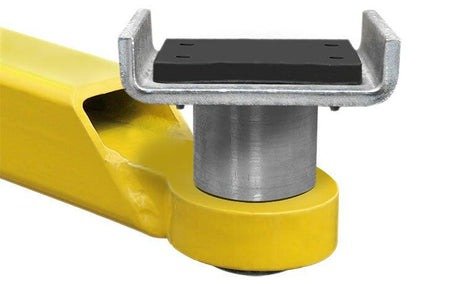

16-piece specialty adapter set includes four 6″ stackable adapters, four 3″ stackable adapters, four polyurethane contact pads and four frame cradle pads
Convenient storage is included for truck and van adapters
Triple-telescoping arms provide increased range for lifting point access
Lifting Capacity*
12,000 lbs. (5,443 kg)
*Max Capacity / Front Axle
6,000 lbs. (2,722 kg)
*Max Capacity / Rear Axle
6,000 lbs. (2,722 kg)
Rise
A – Rise:
69″ (1,753 mm)
B – Rise + Pad Only:
74″ (1,880 mm)
C – Rise + Pad + 63 mm Adapter:
80″ (2,032 mm)
D – Min. Height + Pad:
5″ (127 mm)
Time to Full Rise:
90 seconds
Outside Dimensions
E – Height Overall:
170″ (4,318 mm)
F – Width Overall:
155″ (3,937 mm)
G – Outside Columns:
144″ (3,658 mm)
Inside Dimensions
H – Inside Columns:
120″ (3,048 mm)
I – Drive-Thru Clearance:
106″ (2,692 mm)
J – Floor To Overhead Switch:
165″ (4,191 mm)
Arms & Pads
K – Front Arm Reach: (MIN)
32″ (813 mm)
K – Front Arm Reach: (MAX)
60″ (1,524 mm)
L – Rear Arm Reach: (MIN)
32″ (813 mm)
L – Rear Arm Reach: (MAX)
60″ (1,524 mm)
Max Load Per Arm
3,000 lbs. (1,361 kg)
Power Unit
Motor:
220 VAC / 60 Hz / 1 Ph
Noise:
45 dB
Shipping
Weight:
2,612-lbs. (1184.7 kg)
Dimensions:
175” x 29” x 36” (4470 mm x 736 mm x 914 mm)
