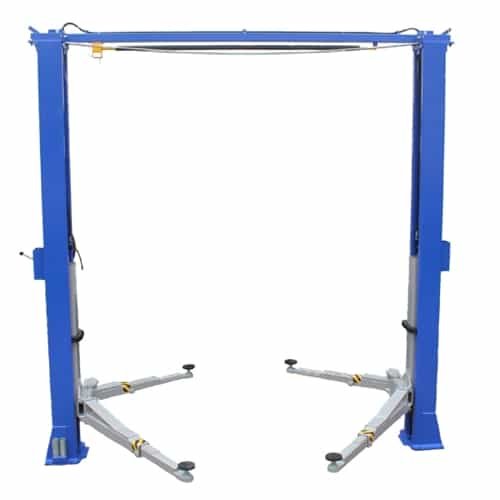

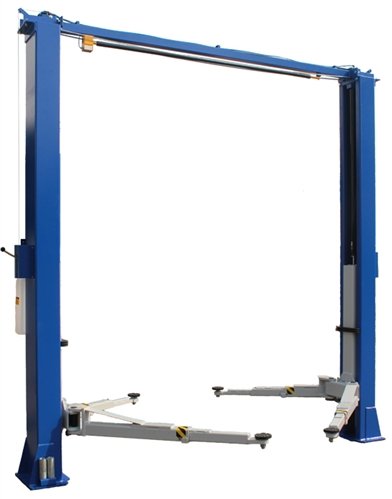

AL2-11KC-DX 11,000 lb. Capacity Bi-Symmetric Two Post Car Lift

Auto Lift AL2-11KC-DX clear floor direct drive Bi-Symmetric™ 11,000 lb. capacity car lift is engineered and built to offer great features at an economical price. The AL2-11KC-DX features and designs will make this the most used lift in your garage. With versatile user-friendly Bi-Symmetric™ Configurable arms, 3 stage front arms, symmetric columns, single point lock release, low profile arms, rubber door guards and spin up pads with stackable truck adapters offers everything you’d expect and more!

Features:

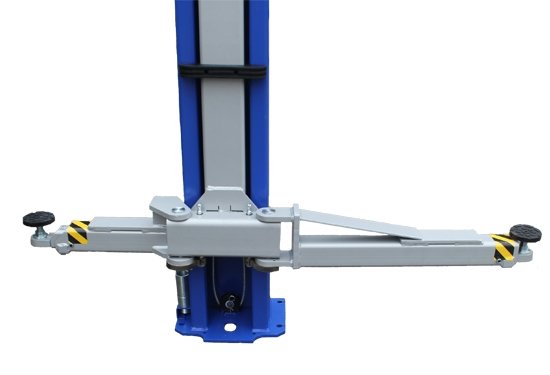

3 Stage Front Arms and 2 Stage Rear Arms

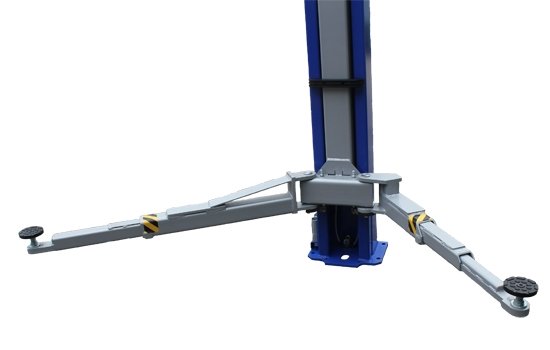

180° Front Arm Rotation

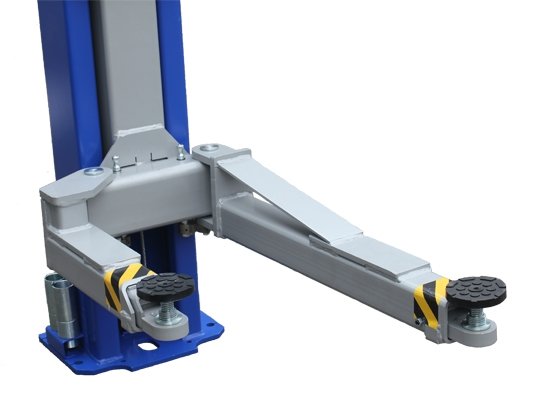

Rubber Door Guards and Spin Up Pad Adapters



180° Front Arm Full Rotation



Optional TP11DX-SPNCA Set of Four Spin-Up Cradle Adapters

• 11,000 lb lifting capacity
• Asymmetric/Symmetric Arm Configuration
• Direct Drive
• 3 Stage Front Arms
• Symmetric Columns
• Single Point Lock Release
• Low Profile Arms
• Rubber Doors Guards
• Spin Up Pads

Includes Stackable Truck Adapters Set of 4 each: 2″ & 4″

Specifications	AL2 11KC-DX
Capacity	11,000 lbs.
Overall Height	144″
Width Overall w/Power Unit	145-1/2″
Max Lift Height	71″
Min Pad Height	4″
Width Between Columns	116″
Drive thru Clearance	104″
Lifting speed	50 sec
Asymmetric / Symmetric	Both
Front Arm Reach – min/max	23″ – 45″
Rear Arm Reach – min/max	41″ – 45″
Clear Floor / Floor Plate	Clear Floor
Column Thickness	gauge # 7 or 3/16″ (4.76 mm)
Power	220V – 20 AMP – 1 PH
Ship Weight	1,705 lbs.
